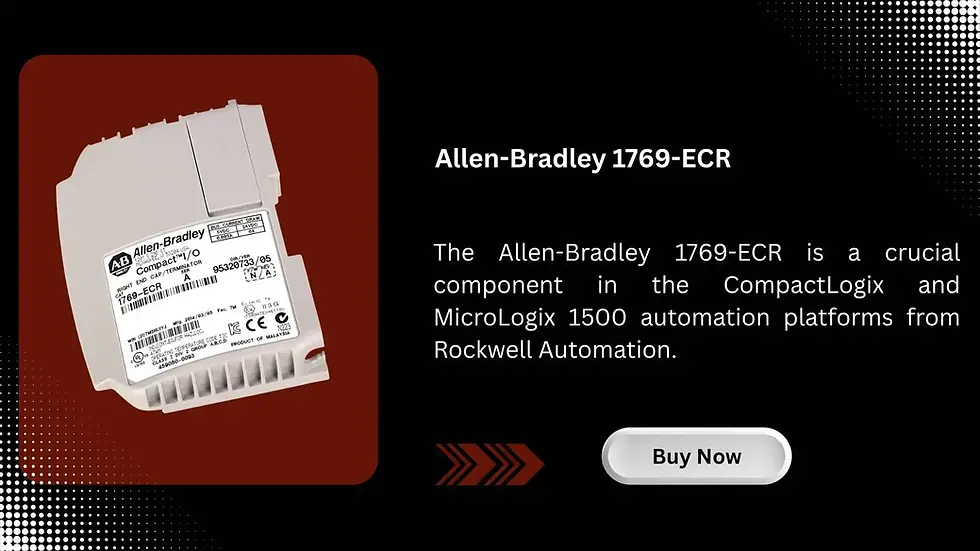

Allen-Bradley 1769-ECR

Allen-Bradley 1769-ECR – Essential End Cap for Compact I/O System Termination and Data Integrity

The Allen-Bradley 1769-ECR is a crucial component in the CompactLogix and MicroLogix 1500 automation platforms from Rockwell Automation. While it may appear to be a simple hardware piece, its function is essential to the proper operation and integrity of 1769 I/O module assemblies. The 1769-ECR is a right end cap (right end terminator) designed to be installed at the end of a 1769 I/O bank, serving both electrical and mechanical purposes. Without this terminator, the Compact I/O system will not function correctly, making it an indispensable part of any CompactLogix setup.

The primary purpose of the 1769-ECR is to terminate the communication bus and backplane power connections between the controller and the I/O modules. It is installed at the far right end of the I/O assembly to properly close off the system, maintaining the continuity and shielding required for the bus to operate within its specifications. If this end cap is missing or improperly connected, the I/O modules will fail to communicate, and system errors will occur. This highlights its importance not just as a passive accessory, but as an active enabler of system stability.

Physically, the 1769-ECR is built in the same form factor as the other modules in the 1769 family, ensuring seamless integration and easy installation. It uses the same locking tab mechanism that allows it to snap securely onto adjacent I/O modules. The connection is tool-less, allowing maintenance personnel and system integrators to install or replace it quickly. This saves valuable time during commissioning or troubleshooting and reduces the risk of wiring errors or mechanical faults.

In terms of compatibility, the 1769-ECR works with all 1769 Compact I/O systems, including those used in MicroLogix 1500 and CompactLogix controller environments. It does not require programming or configuration, which simplifies system design. However, its absence is immediately noticeable, as the controller will generate a fault and prevent normal I/O operation if the cap is not properly installed. That makes this part one of the first things to check when dealing with communication or power issues in the system.

The Allen-Bradley 1769-ECR also helps maintain the mechanical integrity of the I/O module bank. When added to the end of an I/O chain, it secures the final module, preventing movement and mechanical strain on the module connectors. This reduces the risk of physical wear or damage to delicate electronic contacts due to vibration or shock in industrial environments, thus prolonging the life of the system.

The 1769-ECR complies with industrial durability standards and can operate in temperatures ranging from 0°C to 60°C, like the other modules in its series. It is built with high-quality, insulated materials and is UL and CE certified, ensuring safe and reliable operation in a variety of control panel environments. Its robust housing and design allow it to perform reliably in industrial control panels, manufacturing floors, and other demanding automation environments.

If the 1769-ECR is damaged, missing, or showing signs of wear—such as broken clips or connection faults—it should be replaced immediately to restore proper system functionality. Fortunately, the module is cost-effective and readily available, making it easy to swap out without any downtime. In some cases, users experiencing intermittent I/O faults can resolve the issue simply by inspecting and reseating the end cap.

In conclusion, the Allen-Bradley 1769-ECR may be a small component, but its role in maintaining communication, power integrity, and mechanical stability in a 1769 I/O system is vital. It ensures that the entire CompactLogix or MicroLogix I/O assembly operates reliably and securely. As such, it’s not just a passive piece of hardware—it’s a silent guardian of your automation system's functionality.
