Schneider Electric BMXDDO3202K

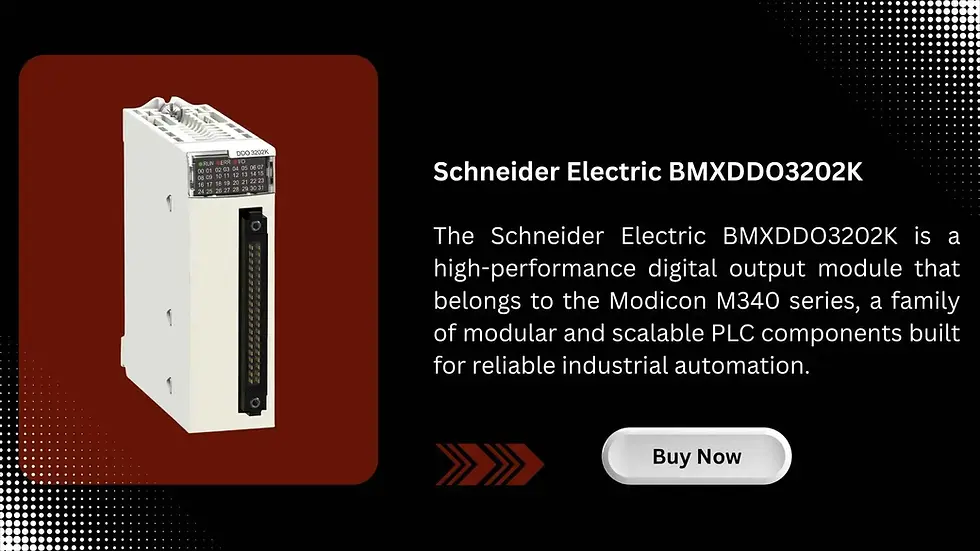

Schneider Electric BMXDDO3202K – High-Density Digital Output Module for Efficient Discrete Control

The Schneider Electric BMXDDO3202K is a high-performance digital output module that belongs to the Modicon M340 series, a family of modular and scalable PLC components built for reliable industrial automation. Specifically designed for output-heavy applications, the BMXDDO3202K is a discrete (digital) output module offering 32 transistor outputs for managing a wide range of control tasks. Whether controlling solenoids, relays, lamps, contactors, or other output devices, this module is essential for executing fast and accurate switching operations in real-time applications.

Operating on 24V DC positive logic, the BMXDDO3202K uses source-type (PNP) transistor outputs, making it suitable for applications where sourcing current to field devices is preferred. With its 32 channels, it provides high channel density in a compact module footprint, reducing the need for multiple output modules and saving valuable space within control cabinets. This makes it a perfect choice for medium-to-large scale industrial automation systems where scalability and footprint efficiency are important.

The BMXDDO3202K supports a maximum output current of 0.5 A per channel, and the total module load capacity is designed for robust switching even under continuous operation. It also includes short-circuit protection and overload protection, enhancing the safety and durability of both the module and the field devices it controls. The module’s fast switching speed and reliable output operation ensure optimal performance for time-critical automation processes like packaging lines, conveyor systems, and batch manufacturing.

One of the standout features of the BMXDDO3202K is its channel diagnostics and status indication. Each output channel is monitored individually, and fault conditions such as open loads or short circuits are reported directly to the controller. This intelligent fault detection minimizes troubleshooting time and helps prevent prolonged downtime during system maintenance or unexpected failures.

Installation is streamlined thanks to the module’s compatibility with the Modicon M340 backplane system. The BMXDDO3202K mounts easily into the M340 rack and communicates via the backplane to the CPU or remote I/O interface. Its removable front connector allows for quick wiring and easy maintenance, letting field personnel replace the module without disturbing the wiring harness. This modular design not only enhances productivity but also reduces long-term maintenance costs.

From a configuration standpoint, the module integrates seamlessly into EcoStruxure Control Expert (formerly Unity Pro), Schneider Electric’s intuitive PLC programming and configuration environment. Engineers can assign addresses, configure channel behaviors, and monitor real-time status from within the software, offering full control and visibility. Output data can also be scaled or conditioned within the program logic, depending on the automation task at hand.

The BMXDDO3202K is certified to meet CE, UL, and CSA standards, confirming its suitability for use in a wide range of industrial and commercial environments. It is designed to operate in ambient temperatures ranging from 0°C to 60°C, with robust tolerance for electrical noise, vibration, and harsh factory conditions. These features make it a trusted solution for everything from water treatment plants and utility grids to automotive production lines and material handling systems.

If performance issues arise—such as output failures, signal dropouts, or protection trips—the module can often be repaired or reconditioned. Expert repair services can test transistor functionality, replace damaged internal components, and restore output performance, saving the cost of purchasing a brand-new unit. Preventive maintenance and diagnostics using the Control Expert software can also extend the service life of the module.

In conclusion, the Schneider Electric BMXDDO3202K is a high-density, durable, and efficient digital output module for Modicon M340 systems. With 32 sourcing-type outputs, comprehensive diagnostics, and robust protection features, it delivers exceptional performance for discrete control in demanding automation environments. It stands as a reliable choice for OEMs and system integrators looking to build intelligent, scalable, and maintainable control systems.
